95A
Norden
|
Product Description
Vibratory polishing machine operates on the principle of generating three-dimensional high-frequency vibrations within a ring chamber, where the grinding media and parts are contained. These vibrations cause the parts and the tumbling polishing media to move in one direction, resulting in friction that facilitates surface finishing. After polishing, the original shape and dimensional accuracy of the parts are not damaged, the internal stress of the parts can be eliminated, thereby achieving a certain level of finishing, smoothness, and brightness on the surface of the part.
Vibratory Polishing Machine
Curved Vibratory Polishing Machine
Vibratory polishing machine from Norden mainly includes three parts: inertial vibrator, vessel and basement. The color of the outside of the machine is green, and the PU material inside is red. Please let us know if you prefer other colors.
1.Inertial vibrator: it serves as the vibrating source, comprising a vibratory motor, springs, and eccentric blocks. The inertial vibrator can effectively eliminates burrs, sharp edges, edges, rust, oil stains, etc., so that the surface of the part reaches a certain degree of polishing.
2.Vessel: it is constructed by welding annular steel plates together and is lined with high-quality polyester PU to minimize noise and the impact of your products.
3.Basement: Constructed from welded steel, the basement incorporates springs to securely hold the vessel.
Norden machinery has been committed to producing and developing high quality polishing machines for more than 20 years. Vibratory polishing machines have the following excellent performance.
Internal Liner
The inner liner is made of Polyester PU, which is a kind of high wear-resistant and corrosion-resistant material and is poured in one time. It can avoid piece stick to wall and reduce working noise and make the machine have long service life.
Internal Spring
The inner spring helps to drives the vibration of the machine to polish and reduce the crash between media and machine.
Steel Plate
The whole machine steel plate is thickened to make the machine stability is better. The load capacity is obviously improved, and the machine shell is not easy to crack.
No Damage To Parts
The polishing process does not destroy the original size and shape of parts. Our machine can achieve automation, unmanned operation and easy to operate. In the process of work, you can check the processing of the parts at any time.
| Feature
1. Effectively reduce working noise.
2. Large loading capacity and wide application range.
3. Manually separate polishing media and products.
4. Automated, unmanned operation.
5. Does not destroy the original size and shape of the part.
6. Suitable for large quantities of small and medium size parts finishing processing.
|
Application
Vibratory polishing machine can be applied to the surface polishing, chamfering, deburring, polishing and brightening of various size parts in mass production. It does not affect the original dimensional accuracy of the product after treatment. It also can eliminate the internal stress of the parts and provide the surface finish of the product.This lays a good foundation for some products subsequent electroplating, spraying and other surface treatment.
1. Jewelry polishing: such as pendants, earrings, necklaces, rings, chains, bracelets, pearls, silverware etc.
2. Cutlery polishing, such as spoons, forks and knives.
3. Rust removal and deburring hardware tools
4. Electronic components finishing
5. Plastic deburring
6. Ceramic jade polishing
7. Laser cut parts polishing
8. 3D print parts polishing
9. ...
|
Polishing Comparison
POLISHING
RUST REMOVAL
RUST REMOVAL
POLISHING
POLISHING
DENURRING
DENURRING
DENURRING
RUST REMOVAL
RUST REMOVAL
|
Size Information
This is the general product parameter information we can provide, if you need to customize the size or change the engine power please contact us.
Vibratory Polishing Machine
Size Parameter Picture
| Model | 40A | 60A | 80A | 95A | 150A | 250A | 350A | 450A | 650A | 950A |
| Total volume(L) | 40 | 60 | 80 | 95 | 150 | 250 | 350 | 450 | 650 | 950 |
| A(CM) | 50 | 64 | 68 | 78 | 103 | 118 | 134 | 145 | 185 | 215 |
| H1(CM) | 62 | 74 | 74 | 75 | 87 | 93 | 102 | 108 | 145 | 170 |
| H2(CM) | 19 | 24 | 25 | 26 | 30 | 34 | 36 | 40 | 48 | 56 |
| ΦB(CM) | 8 | 14 | 14 | 20 | 45 | 52 | 62 | 62 | 89 | 100 |
| ΦC(CM) | 16.5 | 20 | 22 | 24 | 23 | 28 | 29 | 34 | 10 | 47 |
| Weight(KG） | 50 | 85 | 100 | 120 | 280 | 330 | 450 | 550 | 1200 | 2000 |
| Box weight(kg) | 10 | 15 | 20 | 20 | 50 | 60 | 20 | 80 | 150 | 180 |
| Package dimensions(CM) | 56*56*65 | 71*71*78 | 76*76*78 | 86*86*78 | 110*110*91 | 125*125*110 | 145*145*120 | 157*157*122 | 200*200*170 | 230*230*170 |
| Motor(KW) | 0.55 | 0.75 | 0.75 | 1.1 | 3 | 3 | 5.5 | 7.5 | 7.5 | 11 |
| Rotating speed(r/min) | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 | 1450 |
| amplitude(mm) | 0.8-3 | 0.8-3 | 0.8-3 | 0.8-3 | 0.8-4 | 0.8-4 | 0.8-6 | 0.8-7 | 0.8-8 | 0.8-10 |
| PU(mm） | 6-12 | 6-12 | 6-12 | 6-12 | 10-15 | 10-15 | 10-20 | 10-20 | 10-20 | 10-20 |
40A
60A
80A
95A
150A
250A
350A
450A
650A
950A
Curved Vibratory Polishing Machine
Curved Vibratory Polishing Machine
| Model | ND150A | ND250A | ND350A | ND600A | |
| Total volume(L) | 150 | 250 | 350 | 600 | |
| Max overall dimension | 860 | 980 | 1110 | 1850 | |
| Cmotor installation tube | 460 | 525 | 620 | 910 | |
| Process bowl width | 230 | 280 | 290 | 400 | |
| Tunnel depth(mm) | 320 | 380 | 390 | 480 | |
| Machine height(mm) | 820 | 890 | 1020 | 1120 | |
| Motor(kw) | 3.0 | 3.0 | 5.5 | 5.5/7.5 | |
| Weight(kg) | 350 | 420 | 480 | 1200 | |
Method of use
The using method of this product is very simple. The parts requiring polishing can be placed in a container equipped with polishing media beforehand. Through the consistent vibration of the container, it effectively eliminates burrs, sharp edges, corners, rust, oil stains, etc., thereby achieving a certain level of finishing, smoothness, and brightness on the surface of the part.
Norden machinery has advanced technology and rich manufacturing experience. Our vibratory polishing machine not only have excellent performance, but also contain deep care for users. We hope that our products can help you in your business.

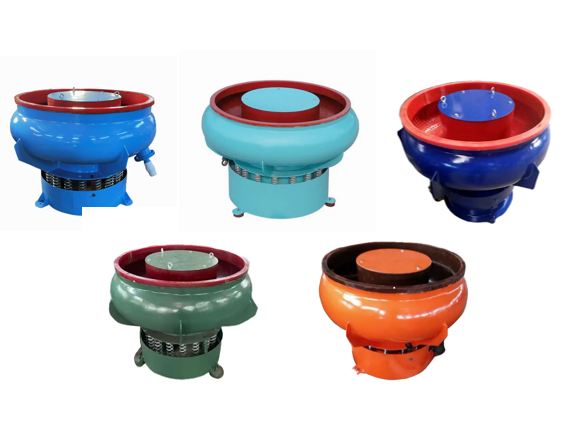

We can provide you with product customization services. We will try our best to help you make the color or special shape you like. If you have any special customization needs, you can tell us. The pictures below are our customized machines for some customers.
|
Product Factory Real Show
|
Company Profile
Huzhou Norden Machinery has been adhering to the business for more than 20 years. Our company has strong technical force and advanced equipment. We have provided domestic and foreign customers with good products and good services. We also have a wide selection of vibratory finishing machine and grinding media. Our equipment is widely used in machinery, electronics, instrumentation, aerospace, motorcycles, daily hardware, handicrafts, accessories and other processing and manufacturing industries of metal and non-metals.
With the increasing awareness of metal finishing industry is harming the environment,our products can reduce the pollution of production. We adhere to employing eco-friendly manufacturing processes and raw materials that can be used safely and effectively for years. Our qualified engineers will take care of everything from planning your project to the final installation and after-sales care. Welcome domestic and foreign customers to negotiate and we will give you a perfect solution!
|
Delivery
The modes of transport of machines include sea transport and land transport. The nearest ports to our factory are Ningbo and Shanghai. Nordern can customize environmental wooden packing for you. At the same time, it is convenient for you to disassemble. We are able to make the most suitable transport solution according to your specific needs and the dimensions your machine. Whether you need to ship FCL, LCL or bulk, we can provide professional service. During the transportation process, we strictly comply with international transportation regulations. We also provide real-time cargo tracking services, so that you can know the status of the shipment at any time.
Nordern aims to create a hassle-free transportation experience for you. To find out more about our shipping services or to get a quote, please contact our customer service team. Look forward to establishing long-term and stable cooperative relationship with you!
|
Packaging
Wooden Case
Wooden Case
Wooden Case
|
